Shenzhen Anhualong Technology Co., Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | AHL |
| Model Number : | GK series |
| Certification : | CE ROHS |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 5,000 square meters per month |
| Delivery Time : | 20-25 day |

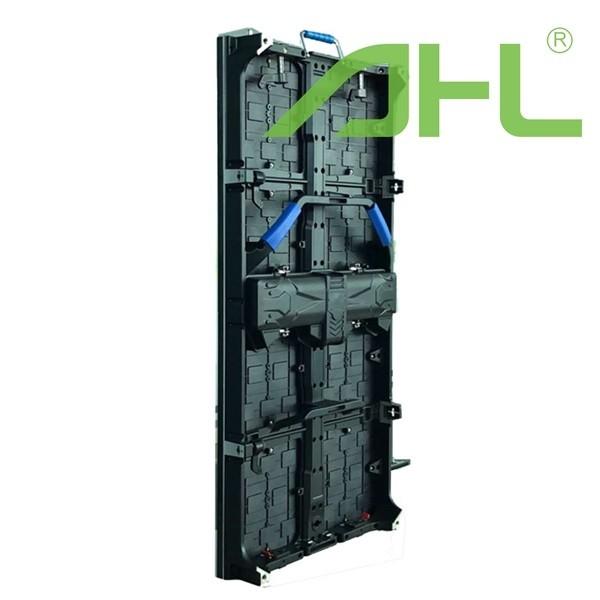

2.6mm 2.9mm Stage Rental Led Screen Light Weight Led Panel Curved Design
GK series
| Parameter | Specification | |||||
| Product name | GL 2.6 | GL-2.9 | GL-3.91 | GL-4.81 | GL-5.95 | GL-6.25 |
| Application envionment | Indoor rental | Indoor / Outdoor rental | ||||
| Pixel pitch (mm) | 2.6 | 2.9 | 3.91 | 4.81 | 5.95 | 6.25 |
| Brightness (nits) | Indoor: 960-1200; Outdoor: 4000-6500 | |||||
| Pixel configuration ( Indoor) | SMD 2020 | SMD 2020 | SMD 2020 | SMD 3528 | SMD 3528 | SMD 3528 |
| Pixel configuration (Outdoor) | SMD 1921 | SMD 1921 | SMD 2727 | SMD 2727 | ||
| Panel size (W×H) (mm) | 500×500X75/ 500×1000X75 | |||||
| Panel weight (kg) | 8.5 / 13.5 | |||||
| Pixel per m2 | 147929 | 118906 | 65410 | 43222 | 28247 | 25600 |
| Pixel density per panel 500X500 | 192 × 192 | 173 × 173 | 128 х 128 | 104× 104 | 84 х 84 | 80 × 80 |
| Pixel density per panel 500X1000 | 192 × 385 | 173 × 345 | 128 х 256 | 104× 208 | 84 х 168 | 80 × 160 |
| Display refresh rate (Hz) | 1920/3840 (optional) | |||||
| Input power per m2 (Max/Avg.) (w/㎡) | 620/220 | 600/210 | 540/190 | 380/150 | 560/195 | 550/190 |
| Panel area (㎡) | 0.25/ 0.5 | |||||
| Panel material | Aluminum alloy | |||||
| Ingress protection (front/rear) | Indoor: IP30 / Outdoor: IP 65 | |||||
| Certification on request | CE, RoHS, EMC | |||||
| Curved locks option | ± 10 ° | |||||
| Maintenance | Front/Back service- optional | |||||
Application of LED display screen:
full color LED display,also calLED LED screen, LED video wall, or LED sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/LED video wall/LED screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.
LED display screen now are widely applied in media advertising, transportantion,Security,
Real estate and Stage show background.
|
|
